Turnable lifting point, grade 80

Turnable lifting point, grade 80

Turnable lifting point, grade 80

Turnable lifting point, grade 80

E-mail Get PDF

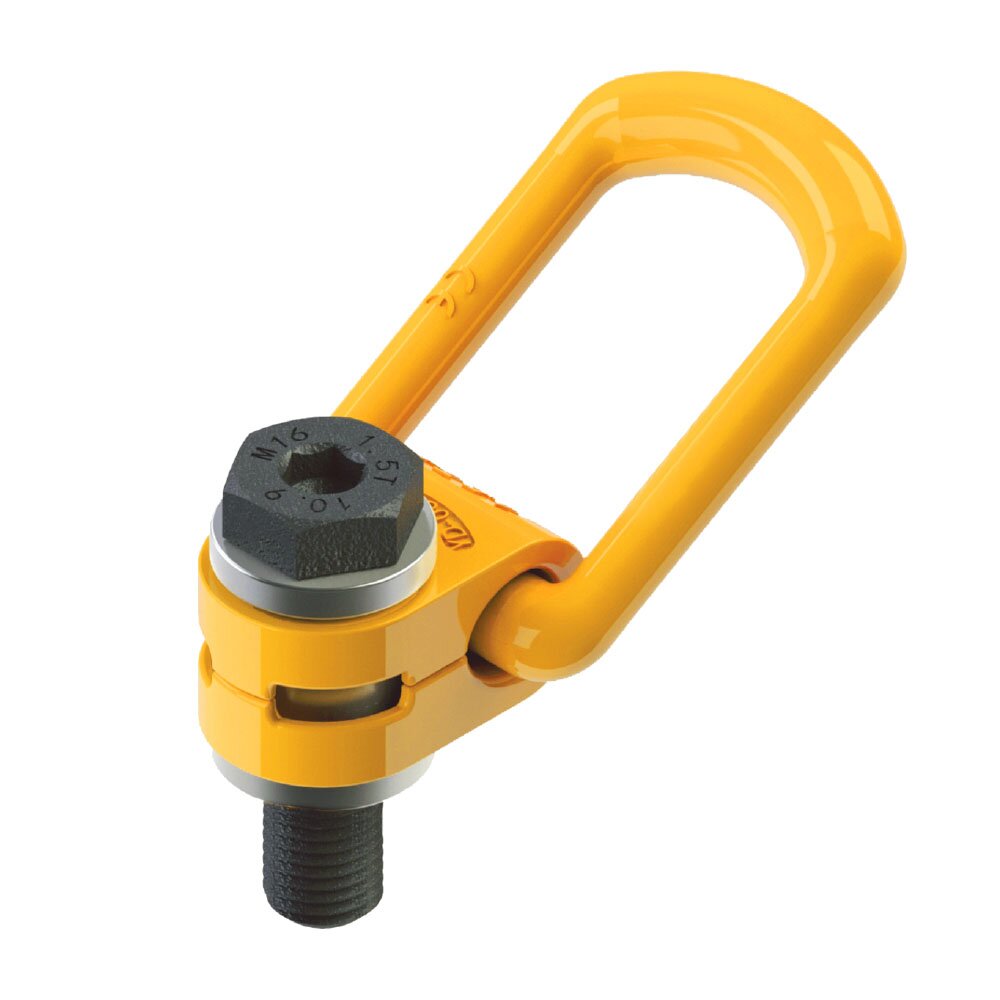

turnable lifting point for all lifting directions.
eye turns to the direction of the load
bolts also available with 120 mm thread
bolt grade 10.9

Show more

Quantity:

Show all variants

Log in to webshop

Product number:

turnable lifting point for all lifting directions.
eye turns to the direction of the load
bolts also available with 120 mm thread
bolt grade 10.9

Material: Steel
Marking: According to standard, CE-marked
Temperature range: -40°C – (+)200°C
Finish: Painted, yellow
Standard: EN 1677-1

Safety factor: 4:1

Filters & subcategories

Show results

WORKING LOAD LIMITS


Thread	WLL (t)	WLL (t)	WLL (t)	WLL (t)	WLL (t)	WLL (t)	WLL (t)	WLL (t)
					0 - 45°	45-60°	0 - 45°	45-60°
M8	0,3	0,3	0,6	0,6	0,42	0,3	0,63	0,45
M10	0,63	0,63	1,26	1,26	0,88	0,63	1,32	0,95
M12	1	1	2	2	1,4	1	2,1	1,5
M16	1,5	1,5	3	3	2,1	1,5	3,1	2,2
M20	2,5	2,5	5	5	3,5	2,5	5,2	3,7
M24	4	4	8	8	5,6	4	8,4	6
M30	5	5	10	10	7	5	10,5	7,5
M36	8	8	16	16	11,2	8	16,8	12
M42	15	15	30	30	21	15	31,5	22,5
M48	20	20	40	40	28	20	42	30
