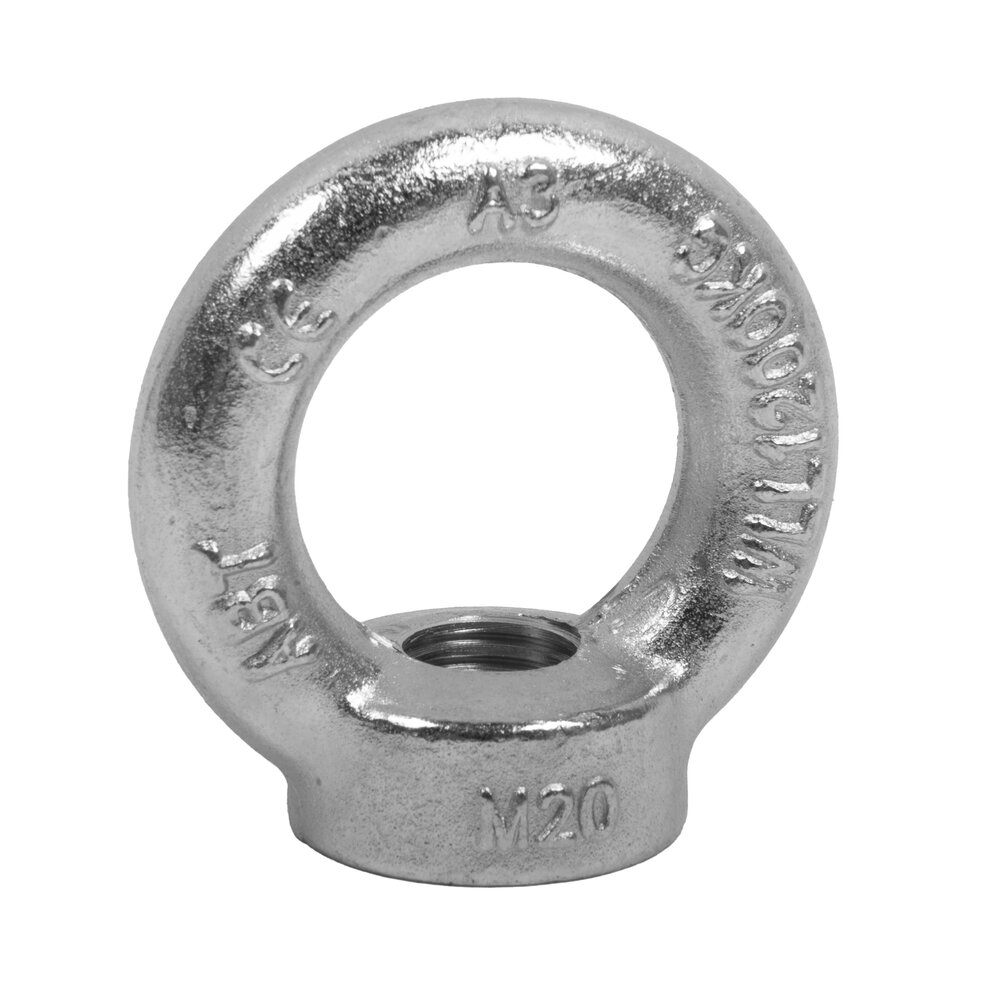

Lifting eye nuts for vertical lifting
Â
 |
 |
 |
 |
 |
|
 |
|
|
| Thread | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL 0-45° (t) | WLL 45-60° (t) | WLL 0-45° (t) | WLL 45-60° (t) |
| M6 | 0,08 | Not allowed | 0,16 | Not allowed | 0,05 | Not allowed | 0,08 | Not allowed |
| M8 | 0,14 | Not allowed | 0,28 | Not allowed | 0,1 | Not allowed | 0,14 | Not allowed |
| M10 | 0,23 | Not allowed | 0,46 | Not allowed | 0,17 | Not allowed | 0,23 | Not allowed |
| M12 | 0,34 | Not allowed | 0,68 | Not allowed | 0,24 | Not allowed | 0,34 | Not allowed |
| M14 | 0,34 | Not allowed | 0,68 | Not allowed | 0,24 | Not allowed | 0,34 | Not allowed |
| M16 | 0,7 | Not allowed | 1,4 | Not allowed | 0,5 | Not allowed | 0,7 | Not allowed |
| M18 | 0,85 | Not allowed | 1,7 | Not allowed | 0,6 | Not allowed | 0,85 | Not allowed |
| M20 | 1,2 | Not allowed | 2,4 | Not allowed | 0,83 | Not allowed | 1,2 | Not allowed |
| M22 | 1,2 | Not allowed | 2,4 | Not allowed | 0,83 | Not allowed | 1,2 | Not allowed |
| M24 | 1,8 | Not allowed | 3,6 | Not allowed | 1,27 | Not allowed | 1,8 | Not allowed |
| M27 | 2,1 | Not allowed | 4,2 | Not allowed | 1,49 | Not allowed | 2,1 | Not allowed |
| M30 | 3,2 | Not allowed | 6,4 | Not allowed | 2,28 | Not allowed | 3,2 | Not allowed |
| M33 | 3,2 | Not allowed | 6,4 | Not allowed | 2,28 | Not allowed | 3,2 | Not allowed |
| M36 | 4,6 | Not allowed | 9,2 | Not allowed | 3,28 | Not allowed | 4,6 | Not allowed |
| M39 | 4,6 | Not allowed | 9,2 | Not allowed | 3,28 | Not allowed | 4,6 | Not allowed |
| M42 | 6,3 | Not allowed | 12,6 | Not allowed | 4,5 | Not allowed | 6,3 | Not allowed |
| M45 | 6,3 | Not allowed | 12,6 | Not allowed | 4,5 | Not allowed | 6,3 | Not allowed |
| M48 | 8,6 | Not allowed | 17,2 | Not allowed | 6,1 | Not allowed | 8,6 | Not allowed |
| M52 | 8,6 | Not allowed | 17,2 | Not allowed | 6,1 | Not allowed | 8,6 | Not allowed |
| M56 | 11,5 | Not allowed | 23 | Not allowed | 8,3 | Not allowed | 11,5 | Not allowed |
| M64 | 16 | Not allowed | 32 | Not allowed | 11 | Not allowed | 16 | Not allowed |
| M72 | 20 | Not allowed | 40 | Not allowed | 14,28 | Not allowed | 20 | Not allowed |
| M80 |
