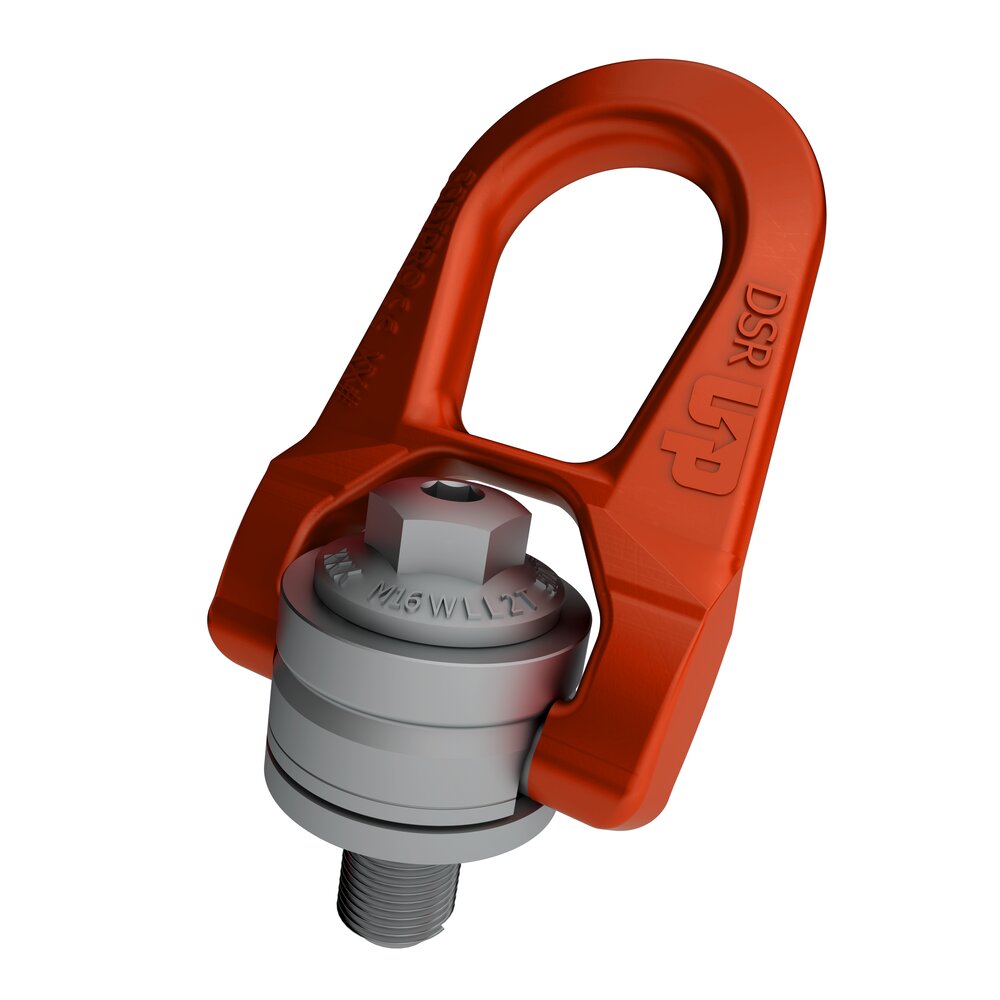

Double Swivel Ring Codipro DSR UP

The double swivel ring DSR UP has been especially designed to guarantee liftings under load. Its double articulation allows it to line up perfectly with the sling.

Features:

  • Swiveling under load
  • Usable for any kind of lifting operation
  • Two ways of tightening:- Allen key or Torque wre

Show more

Product number:

The double swivel ring DSR UP has been especially designed to guarantee liftings under load. Its double articulation allows it to line up perfectly with the sling.

Features:

  • Swiveling under load
  • Usable for any kind of lifting operation
  • Two ways of tightening:- Allen key or Torque wrench(also for external hex)
  • The tightening torque is stamped on all lifting rings in the GRADUP range.
  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Temperature range: -20°C up to +200°C
  • Standard: EN 1677-1
    except grade/WLL
  • Safety factor: 5:1
