Electric-hydraulic lifting tables 400V

E-mail Get PDF

For installation, repairs, packaging etc. Operating voltage 3-phase /380-400 V/50 Hz. Control device (cable) with lifting and lowering functions, as well as emergency stop. Equipped with a protection frame, which prevents the table from lowering, if something gets in between the plates. Electromagne

Show more

Show all variants

Log in to webshop
Product number:

For installation, repairs, packaging etc. Operating voltage 3-phase /380-400 V/50 Hz. Control device (cable) with lifting and lowering functions, as well as emergency stop. Equipped with a protection frame, which prevents the table from lowering, if something gets in between the plates. Electromagnetic valve, the table can not be lowered (it will stop), if a hose breaks. Delivered completely assembled without plug.



  • Features: Lifting times 1/2t: 20 sek | 4t: 40 sek
  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 1570

Filters & subcategories

Show results

SPARE PARTS

Spare part (product code) Description Suitable for lift table (product code/-s)
NOSPHKAPULA Hand control switch | Incl. cable and plug  NOSP1000H, NOSP2000H, NOSP4000H
NOSPBOX2 Electric control box/unit | New type, with steel connectors NOSP1000H, NOSP2000H, NOSP4000H

Note: Suitable for lifting tables manufactured after (year) 2013
Also other spare parts available with a delivery time, ask our sales for more information

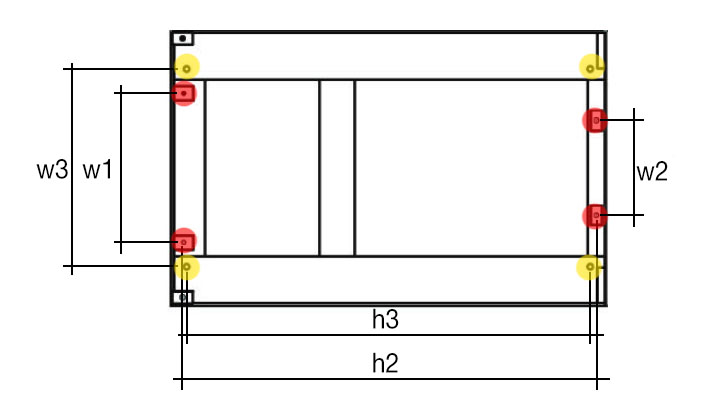

DIMENSIONS

asset_image

Model bottom plate, floor mounting holes (yellow) h3*w3 top plate, lifting eye holes (red) h2*w1-2 diameter of holes for floor fixing the diameter of the holes in the lifting eyes the thickness of the bottom plate thickness of the top plate
NOSP1000H 1206*480 mm 1205*410 mm 16 mm 20 mm 4 mm 5 mm
NOSP2000H 1195*545 mm the fixed head of a scissor w1: 1130*740 mm

roller head of a scissor w2: 1130*440 mm		 16 mm 20 mm 5 mm 6 mm
NOSP4000H 1500*630 mm 1500*540 mm 16 mm 20 mm 5 mm 6 mm
